Electronic Ignition

Electronic Ignition for diesel-gas generator set. Replace the original ignition. PC connection. Variation of parameters in real time. It can be used on 4, 6 or 8 cylinders. Outputs for alarm events.

DESCRIPTION:

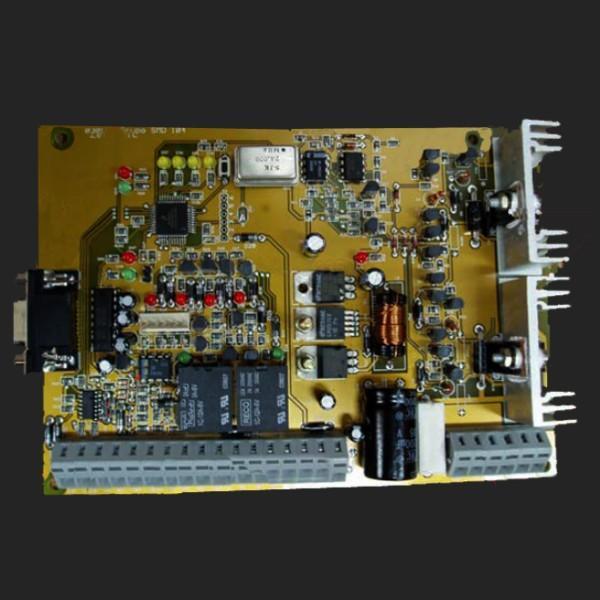

The system is used to replace the original ignition (distributor firing with a single coil) with an ignition that is better adapted to the market and that has more features than could be given with a conventional ignition. It is made up of the ignition plate, which has rs232 communication through a PC, which allows us to vary its parameters (coil charging time, degrees of advance in low revs and in low-speed regime). , etc) and all this in real time. It also has a switching power supply which means that the power input can be either 12 or 24 volts as required. Ignition is achieved by the lost spark method and through power transistors, which also have short circuit protection. This ignition can be used in 4, 6 or 8 cylinders, regardless of the power of the equipment. It has transistor outputs which can be used to make decisions in the event of any alarm event, be it low oil pressure, overspeed, etc.

Electronic Ignition system for diesel-gas generator set.

Power Supply 24V Battery.

PC connection to configure the ignition parameters in real time.

It can be used on 4, 6 or 8 cylinders engines.

Analog and digital configurable inputs and outputs.

Relay output to signal problems.

Developed for CRAM Electro S.R.L.
